When a La Jolla home is settling, tilting, or losing support under an existing footing, homeowners often hear about foundation underpinning—deepening or widening the foundation so it rests on stronger material or spreads load over a larger area. That definition comes from established engineering practice (Caltrans Foundations Manual citing FHWA guidance). It is not a product you can order from a photo, and it is not a guarantee that every sloping floor needs piers.
Homes throughout La Jolla sit on coastal bluffs, canyon edges, Mount Soledad hillsides, and flatter mesa-like pockets. Public geotechnical filings for local addresses describe continuous strip footings, stem walls with framed floors, stair-stepped slope footings, and pier/caisson with grade-beam systems. That diversity is illustrative, not a survey of which lots “need underpinning.”
La Jolla Structural serves La Jolla homeowners directly. We evaluate settlement and support conditions, explain what we are seeing, and repair or underpin when the site requires it. When stamped plans are required, we coordinate with California-licensed engineers as needed. We do not invent credentials, fixed prices, or claim that any method permanently stops landslides or bluff retreat.
What underpinning actually means
In engineering terms, underpinning strengthens and stabilizes the foundation of an existing structure by extending it in depth or in breadth. Authoritative guidance lists purposes such as arresting or preventing structural movement, upgrading capacity, repairing inadequate foundations, transferring loads to deeper strata, and—in some engineered programs—raising settled foundations. Those are project-specific engineering goals, not website promises.
Homeowners often hear brand names and method slogans before they hear a clear cause. Keep three layers separate:
- Symptoms — cracks, floor slope, sticking doors, gaps at stairs or cabinets
- Evaluation — geotechnical and structural investigation of why support is changing
- Repair — the permitted, engineered response if one is needed
Underpinning belongs in the repair layer. Choosing a pier product before diagnosis often produces bids that cannot be compared because they assume different causes.
Who typically explores underpinning
Property owners and buyers usually arrive here after one of these triggers:
- Progressive foundation settlement or a sinking foundation pattern that is getting worse
- A structural or home inspection that flagged inadequate bearing, fill, or out-of-level floors
- Remodel or addition plans that expose shallow footings on soft soil or undocumented fill
- Hillside or canyon lots where shallow continuous footings no longer match soil or slope conditions
- Lender, insurer, or escrow questions that require professional clarification before closing
If you are still unsure whether the issue is cosmetic or structural, start with a clear evaluation path through the broader foundation repair process rather than jumping straight to construction bids.
Warning signs that warrant evaluation (not automatic underpinning)
Seek a qualified look when you notice:
- New, widening, or offset cracks in concrete or masonry foundations
- Floors that feel progressively out of level, especially when slope tracks with exterior grades or drainage
- Doors and windows that bind in patterns tied to seasons, irrigation, or recent storms
- Gaps at cabinets, counters, porches, or exterior stairs
- Crawl-space posts, beams, or stem walls that look displaced or deteriorated
- Retaining walls or grades pulling away from the house
- Sudden changes after irrigation adjustments, plumbing leaks, nearby grading, or heavy rain
A crack alone is not proof that underpinning is required. Dismissing a pattern of movement as “just old house character” is equally unwise. Patterns, progression, and related symptoms matter more than any single hairline mark.
Why La Jolla context matters before any deep-support decision
Community and topography
La Jolla’s planning documents describe a nearly built-out coastal community of the City of San Diego where infill dominates. Steep hillside criteria—including Environmentally Sensitive Lands (ESL) concepts tied to steep natural slopes (≥25% natural gradient with vertical-elevation criteria under SDMC §143.0142)—and coastal bluff themes appear throughout local planning. That setting raises the odds that drainage, slope stability, access, and discretionary review layers matter. It does not mean every home needs underpinning.
Geology and soils (parcel-specific)
Regional geologic mapping (Kennedy & Tan 2008) describes the Mount Soledad Formation—sandstone and conglomerate associated with the Mount Soledad anticline—as part of La Jolla’s geologic story. Quaternary terrace and old paralic deposits appear in many coastal narratives. Eocene units including Ardath Shale are cited as slide-prone where slopes are steep or bedding is adverse. Surface fill and residual soils are frequent on developed lots.
Individual geotechnical reports may discuss terrace deposits, residual soils, fill, expansive soil, or bluff conditions. Those findings are parcel-specific. Advertising a single soil story for every La Jolla lot—or claiming that “every La Jolla house needs piers”—would be inaccurate.
Mapped hazards to check on your parcel
Parcel-specific hazards that can drive investigation before any underpinning decision include:
- City Seismic Safety Study landslide/slope-instability and steep-terrain categories
- Alquist-Priolo strands of the Rose Canyon Fault Zone (La Jolla quadrangle; CGS official maps and City fault-zone notice)
- Coastal Overlay and ESL steep-hillside rules when exterior excavation, grading, or encroachment into mapped sensitive areas is involved
Always parcel-check official maps and tools. Do not generalize from neighborhood rumor. Surface-fault rupture setbacks under the Alquist-Priolo Act differ from shaking, densification, or settlement effects—so do not blame every unlevel floor on the Rose Canyon Fault.
A local hillside caution (history, not a template)
Published engineering literature documents the October 3, 2007 Soledad Mountain Road slope failure in La Jolla—reactivation of an ancient bedding-plane landslide after historic grading removed toe support. Stabilization literature describes large-diameter CIDH shear pins and related works. Use that episode as hazard history, not as a claim that house underpinning alone would have stopped that mass movement, and not as a template for any current address.
Housing age
ACS estimates for ZCTA 92037 show a mid-century-heavy housing stock with a large pre-1980 share. Older homes may combine dated detailing with later additions, remodeled drainage, or hillside grading whose fill quality is unknown until tested. Exact crawl-space versus slab percentages are not published in the year-built table—so this site will not invent them.
Critical distinction: house underpinning vs slope stabilization
For La Jolla content, keep these concepts separate:
- Structure underpinning — transfers building loads to better support under the existing foundation
- Slope / landslide stabilization — addresses mass movement of the ground (shear pins, tiebacks, buttresses, drainage of the slide mass, and related works)
- Retaining-wall repair — addresses wall systems that hold soil, which may or may not be tied to the house foundation
- Seismic retrofit — strengthens irregular hillside framing and connections; it is not a synonym for underpinning
A settled house on a creeping slope may need more than piers under the footing. On hillside foundation parcels, diagnosis first is especially important. Underpinning the house is not the same as stopping a landslide mass—and no honest site should claim that piers “permanently stop” bluff retreat, landslide, or slope creep.
Evaluation and diagnosis before any method conversation
A credible path usually looks like this:
- Document symptoms — photos, approximate crack widths, rooms that feel out of level, moisture clues, and when changes started. Ask whether movement appears ongoing and whether a survey or monitoring baseline already exists.
- Choose the right professional lane — We start with on-site evaluation of settlement and support. When soils, slopes, fill, expansion, or mapped hazards drive design, we coordinate with California-licensed structural/civil and geotechnical engineers as needed.
- Identify the governing mechanism — differential settlement, expansive heave, undocumented fill compression, loss of bearing, slope creep, or bluff/erosion loss of support. Soft soils and fill are common conversation starters in local geotech narratives; they are not automatic proof that every lot needs deep foundations.
- Align with City expectations — structural foundation work generally needs a City of San Diego Building Permit. California Building Code §1803.5.5 requires a geotechnical investigation when deep foundations will be used (types, capacities, spacing, installation, inspection, load tests, bearing strata, group effects, and related items—unless sufficient data are otherwise available). City SDMC §145.1803 and Table 145.1803 tie geotech report requirements to Seismic Safety Study hazard categories; the Building Official may also require geotech based on unmapped hazard concern. Class B-type triggers include new structures requiring deep foundations such as piers or pilings. City Information Bulletin IB-141 calls for geotechnical investigation when foundations bear on fill or expansive soil (CRC definition) for the dwelling types covered by the bulletin—conditions that commonly appear in La Jolla geotech narratives and that often precede deep-foundation or underpinning design discussions.
- Screen other layers — historic review for many structures 45 years or older; Coastal Overlay (IB-402) and ESL steep-hillside development permits when exterior excavation, grading, or sensitive-area encroachment is involved. Do not claim “underpinning is always just a building permit.” Timelines are parcel-variable and uncertain—this site will not invent them.
- Only then select methods — helical piles, resistance piers, micropiles, caissons, grade beams, or ground-improvement approaches follow the diagnosis.
City Guidelines for Geotechnical Reports expect deep-foundation recommendations covering vertical capacity (end-bearing vs skin friction), lateral resistance, embedment, diameter, spacing, downdrag, and seismic lateral demands on slopes. Structural connection of new elements to existing footings and walls is stamped structural design territory (BPELSG)—not improvisation. When stamps are required, we coordinate with California-licensed engineers as needed; we do not stamp plans ourselves or claim to be engineer of record.
Methods homeowners hear about (descriptive, not prescriptions)
Depending on diagnosis, underpinning conversations may include:
- Underpinning (general) — deepening or widening support under an existing foundation

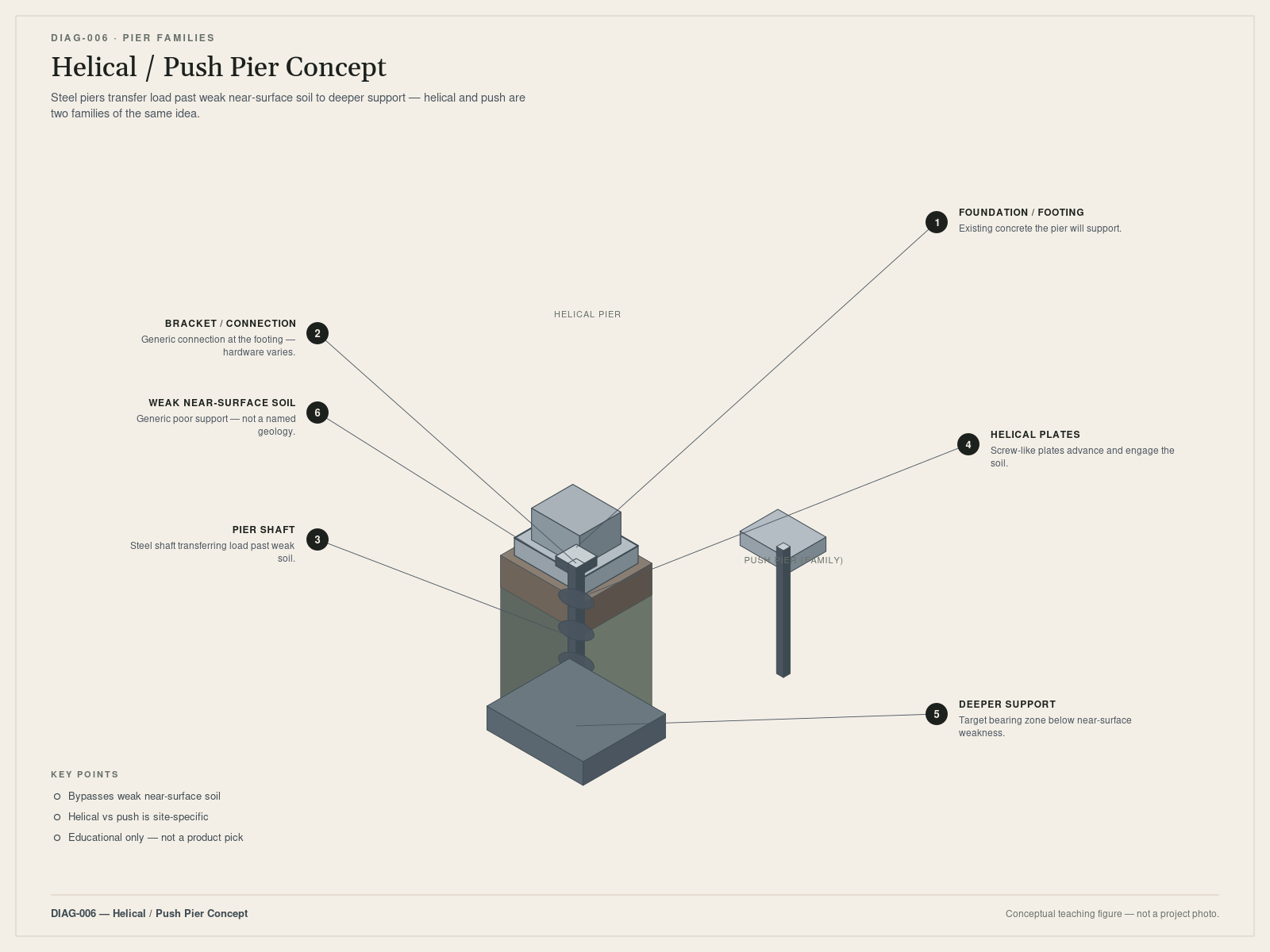

- Helical piles / helical piers — steel shafts with helical plates rotated into the ground; capacity is often correlated to installation torque (product-specific ICC-ES reports and ASCE helical-pile practice—verify project documents)
- Resistance / push piers — driven or hydraulically advanced steel sections that transfer load to deeper bearing (contractor market term; design remains engineer/geotech-driven)
- Micropiles (minipiles / pin piles) — small-diameter (typically under 12 inches) drilled and grouted replacement piles, often steel-reinforced; FHWA/Caltrans note frequent use for underpinning in low-headroom or vibration-sensitive settings; capacity commonly via grout–ground bond (skin friction); end bearing is often neglected due to small diameter
- Caissons / drilled shafts / CIDH — larger-diameter cast-in-drilled-hole deep foundations; City Guidelines for Geotechnical Reports address deep foundations including cast-in-hole caissons, driven piles, and auger-cast piles
- Grade beams — structural beams tying piers, piles, or caissons and distributing loads to the existing foundation system
- Compaction grouting — low-mobility grout injected to densify or displace soil in place (ground improvement / settlement-control family)—distinct from installing a structural pier; suitability is investigative
Related adjacent terms that are not synonyms for underpinning include mass concrete underpinning pits, beam-and-base systems, shoring and cribbing, slabjacking/mudjacking, permeation/chemical grouting, and slope shear pins, tiebacks, or buttresses (often slope stabilization, not house underpinning alone).
Method selection is engineering-driven. Ask which terms on the bid match what the engineers specified—and who designed the connection to the existing foundation.
Distinguishing symptoms, evaluation, and repair
Homeowners get better outcomes when they keep three layers separate:
- Symptoms are what you see (cracks, slopes, sticking doors, a “sinking” feel).
- Evaluation explains likely mechanisms and whether movement is active.
- Repair is the engineered and permitted response—if one is needed.
Skipping evaluation to “save time” often produces competing proposals that cannot be compared because they assume different causes. On hillside and older coastal-adjacent homes, that shortcut is especially risky. Cosmetic crack sealing may hide ongoing movement; active settlement needs a different conversation about support, soils, and monitoring.
Process: from first call to completed, permitted work
1. Intake and triage
Describe location (La Jolla neighborhood / area), foundation type if known, symptoms, prior reports or disclosures, and whether movement appears ongoing.
2. Site evaluation
We access crawl spaces or slabs as feasible; note drainage, irrigation, and slopes; review mapped hazards at a screening level.
3. Technical studies when warranted
When soils, stamped design, or monitoring drive the path, we coordinate geotech borings and lab work, structural calculations, and survey baselines—with California-licensed engineers as needed.
4. Design and permits
Stamped documents when required (via licensed engineers we coordinate with); Building Permit through City of San Diego Development Services; additional coastal, ESL, or historic processes if triggered. Timelines vary—this site will not invent them.
5. Construction
We perform underpinning and related foundation repair within the scopes we take on. Classifications and permit responsibility must match the actual method—pile/caisson, foundation jacking, concrete, and general building/engineering scopes as applicable. B-2 Residential Remodeling is barred from structural footing/foundation changes.
6. Inspections and closeout
City inspections on permitted work are separate from private engineering observations. Keep reports, as-builts, and project closeout documents with your records. Ask how “success” is defined: stabilization in place versus partial lift/re-level, and what residual movement tolerances appear in the project geotech report. Tolerable movement criteria in some La Jolla geotech reports are project-specific, not citywide advertising standards.
Also clarify how utilities, chimneys, pools, retaining walls, and neighbor or easement access will be handled during excavation or drilling.
Engineering, licensing, and consumer protection
- Design / evaluation: When stamped structural or geotechnical documents are required, California-licensed civil, structural, and/or geotechnical professionals (BPELSG) prepare them. We coordinate that work as needed; we do not claim PE/SE stamps as our own.
- Construction: Work must match the scopes and classifications that apply to the method.
- Your homework: Use official license lookup tools, ask who pulls the permit, and get clarity on what success looks like (monitoring, elevation targets, drainage responsibilities). Ask what any warranty discussion excludes—future landsliding, floods, adjacent grading, irrigation changes, and similar items often appear as exclusions on specialty work. This site does not invent warranty terms.
Do not assume flood insurance covers earth-movement settlement or underpinning repairs. FEMA FloodSmart materials treat earth-movement and differential settlement differently from direct flood damage—verify with your carrier.
Cost factors (no fixed ranges)
Price depends on access, foundation type, depth to competent material, number of support points, drainage scope, engineering and geotech fees, permit and possible coastal/historic/ESL review, temporary shoring, utilities, finishes, and whether movement is ongoing. Anyone offering a firm number before seeing the site and defining scope is guessing. This site will not invent “average La Jolla underpinning prices” or financing offers.
Related services and problem pages
Settlement and sinking pages explain why floors move; hillside pages address when slope processes dominate; the foundation repair page covers the umbrella process from evaluation through permitted work.
FAQs
Is underpinning the same as installing helical piers?
No. Underpinning is the broader engineering process of deepening or widening support under an existing foundation. Helical piles are one method family among several. Resistance piers, micropiles, caissons with grade beams, and certain ground-improvement approaches may also appear—when engineers specify them after investigation.
Will underpinning permanently stop a landslide or bluff retreat?
No honest specialist should promise that. Structure underpinning transfers building loads to better support. Slope and bluff processes can require separate stabilization strategies. The 2007 Soledad Mountain Road failure is a documented local reminder that mass movement is not the same problem as a shallow footing on soft fill.
Do I always need a geotechnical report?
Often yes when deep foundations, fill, expansive soil, mapped geologic hazard categories, or Building Official requirements apply. CBC deep-foundation investigation rules, City IB-141, SDMC §145.1803 / Table 145.1803, and the Seismic Safety Study framework are the starting references—not a neighbor’s anecdote.
Is underpinning always “just a Building Permit”?
Not necessarily. Structural foundation work generally needs a City Building Permit, but Coastal Overlay, ESL steep-hillside permits, historic review for many 45+ year structures, and geotech submittals can add layers. Confirm with Development Services for your parcel and scope.
How do I know the bid matches the engineering?
Ask which terms on the proposal (helical, resistance pier, micropile, caisson, grade beam, compaction grout) appear in the stamped plans, who designed the connection to the existing foundation, and how success is measured. Method slogans without engineered scope are not comparable bids.
Can a B-2 residential remodeling contractor do this work?
B-2 is barred from structural footing and foundation changes. Verify CSLB classifications for the proposed method. Classification existence still does not equal suitability.
Will flood insurance pay for underpinning?
Frequently earth-movement and differential settlement claims are treated differently from direct flood damage. Verify with your carrier; do not assume coverage.
Get a Free Quote
Ready for a grounded next step? Share what you are seeing at your La Jolla property—settlement patterns, hillside concerns, prior reports—and we will review your request and follow up about an evaluation with our team.
